Modix BIG-180X

Our widest filament platform — print near-2-metre parts in a single piece, enclosure included.

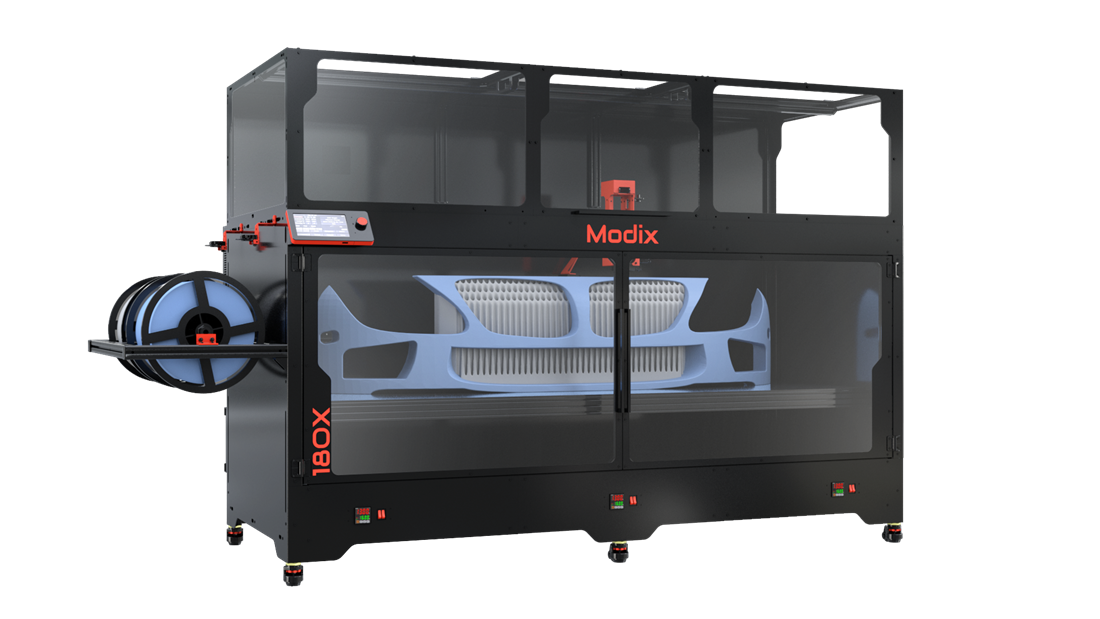

Modix BIG-180X large-format 3D printer

From US$17,000 Starting price · USD

Available for purchase in Canadian dollars.

  • Build volume1,800 × 600 × 600 mm
  • Machine size (W×D×H)2,630 × 1,060 × 1,573 mm
  • Print headGriffin (0.4–1.6 mm nozzles)
  • Max hotend / bed340 °C / 110 °C
  • Motion systemHIWIN linear rails, ball-screw Z
  • ControllerDuet 2 WiFi + 7″ touchscreen
  • MaterialsPLA, PETG, ABS, ASA, PC, Nylon, TPU
  • DetectionClog, crash & filament run-out
  • EnclosureIncluded
  • Weight210 kg
Request a Quote Compare models
Apply for Financing & Leasing ↗Lease-to-own & financing through our partner, Agile Solutions.

See it in action

The BIG-180X in the real world

Modix BIG-180X video — The Modix BIG-180X printing a full-size hockey stick

The Modix BIG-180X printing a full-size hockey stick

Configure your platform

Add-on Options

The full Modix add-on range for the BIG-180X. Prices are starting points in US dollars (payable in CAD at current exchange rates) and may vary by configuration — confirmed on your quote.

Print heads

Griffin Ultra print head
High-speed extrusion up to ~0.5 kg/hour.
US$1,100
Griffin High-Flow hotend
Longer hotend for faster flow.
US$350
Griffin High-Resolution hotend
Shorter hotend for finer detail.
US$130

Dual extrusion

IDEX dual print head
Two independent extruders; soluble supports & multi-material.
US$1,100
IDEX calibration tool
Precise nozzle alignment for IDEX.
US$250

Build platform

Removable magnetic bed
Spring-steel, dual-sided PEI plate.
US$600
Extra PEI sheet
Spare print surface.
US$150
Z-axis HIWIN linear rails
Upgrade the Z axis to linear rails.
US$900

Environment

Full enclosure
Temperature-managed chamber for ABS/ASA.
Included
Active air filter
3-stage pre-filter, HEPA & activated carbon.
US$1,350
Filament dryer (8 kg)
Keeps hygroscopic materials dry.
US$1,600

Materials

Soluble support filament (500 g)
Breakaway / dissolvable supports.
US$100
Soluble support solution (1 kg)
For dissolving supports.
US$35

Nozzles

Brass nozzle pack
Assorted nozzle sizes.
US$60
Hardened steel nozzle pack
For abrasive & carbon-filled materials.
US$170

Accessories

Casters
Mobility for the frame.
Included
Tilt touchscreen + e-stop
Adjustable screen and emergency stop.
US$250
8 kg spool shelf
For large spools / unattended runs.
US$400
Power distribution unit
Cable management and power.
Included

Support & maintenance

Professional services (3 h)
Remote setup & printing help.
US$500
Extended warranty (12 mo)
Extend coverage by a year.
US$450
Basic maintenance kit
Essential spares.
US$300
Advanced maintenance kit
Comprehensive spares.
US$1,400
Filter spares
Replacement filter media.
US$300

Why the BIG-180X

Built on the Generation 4 platform

⚡

Griffin Ultra speed

Optional Griffin Ultra head extrudes up to 0.5 kg/hour for big parts in hours, not days.

▦

Linear-rail precision

HIWIN rails and ball-screw Z keep accuracy tight even at large scale.

⇄

IDEX dual extrusion

Optional independent dual extruders for soluble supports and multi-material parts.

◎

Auto-calibration

Automated bed leveling, gantry alignment and Z-offset for reliable first layers.

In the box

What's included as standard

Every BIG-180X ships ready to produce, backed by Modix Canada support.

  • Griffin standard print head
  • Full enclosure & casters
  • Duet 2 WiFi + DUEX electronics
  • 7-inch touchscreen interface
  • Clog & crash detection
  • Automatic calibration tools
  • 12-month warranty + lifetime support

FAQ

Modix BIG-180X — common questions

How much does the Modix BIG-180X cost in Canada?

The Modix BIG-180X starts at US$17,000 USD. We advertise in US dollars and accept Canadian dollars at the current exchange rate — contact Modix Canada for a full quote including options and shipping.

What is the build volume of the Modix BIG-180X?

The Modix BIG-180X has a build volume of 1,800 × 600 × 600 mm.

What materials can the Modix BIG-180X print?

It prints PLA, PETG, ABS, ASA, PC, nylon and TPU — plus carbon-filled and soluble support materials — with a 340 °C hotend and 110 °C heated bed.

Can I finance or lease the Modix BIG-180X in Canada?

Yes. Financing and leasing are available through our partner Agile Solutions — use the financing button on this page to apply, or ask us when you request a quote.

Does the Modix BIG-180X ship across Canada with support?

Yes. Modix Canada ships the BIG-180X Canada-wide, provides on-site service in Ontario and Quebec, and supports Canadian electrical certification (CSA / ESA field evaluation).
